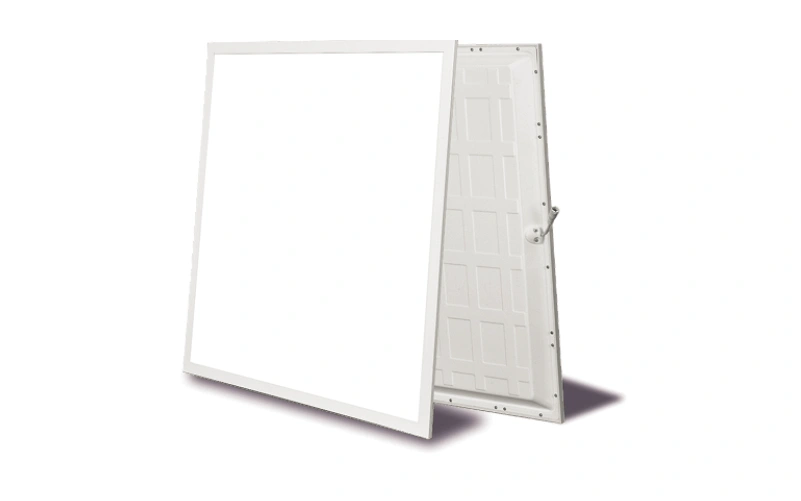

2×2 Backlit LED Panel (40W, Cool White / Warm White)

The 2×2 Backlit LED Panel is engineered to provide consistent, shadow-free illumination with a backlit design that ensures uniform light spread across the entire panel surface. Its slim profile fits neatly into standard ceiling grids, delivering a clean and modern look.

Powered by an SMD 2835 light source, it offers efficient output (130 lm/W) with good color clarity (CRI 80) and stable operation across a wide voltage range. Available in Cool White and Warm White options to match different ambience requirements.

Technical Specification

Wattage

• 40W

CCT (Color)

• CW (Cool White)
• WW (Warm White)

Body Type

• AL Die Cast

Light Source

• SMD 2835

Luminous Efficacy

• 130 lm/W

COB Brand

• Bridgelux / Everstar / Everbrite

CRI

• 80

Input Voltage

• AC 85–265V / 50Hz

Other Information

• Backlit design for uniform, shadow-free illumination
• Slim profile suitable for grid/false ceiling installation
• Suitable for commercial and residential interiors
• Stable performance on wide voltage range

Available Sizes

• 40W – CW, WW
